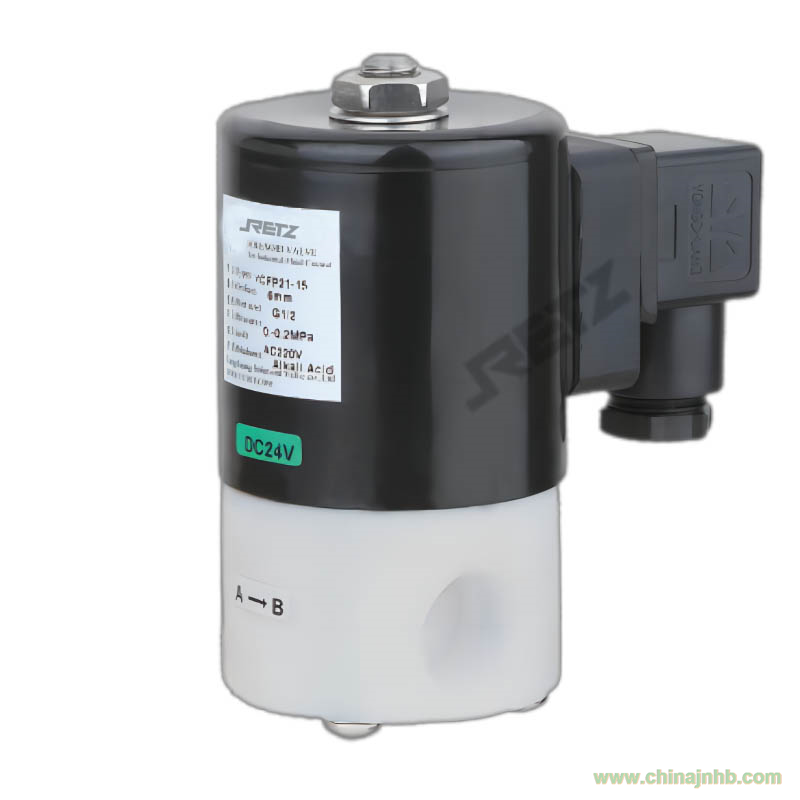

品牌：RETZ瑞茨/我們一直致力于流體控制領域的持續(xù)創(chuàng)新，始于2005……進口耐腐蝕塑料王電磁閥采用聚四氟乙烯為原材料制造,幾乎適用于各種腐蝕性液體、化學液體、酸堿、鹽酸、硝酸、醋酸等各種腐蝕性介質管道作自動化控制The
Retz corrosion-resistant plastic king solenoid valve is manufactured using
polytetrafluoroethylene as the raw material, and is almost suitable for
automatic control of various corrosive media pipelines such as chemical,
acid-base, hydrochloric acid, nitric acid, acetic acid, etc
特 征: 隔離膜片式結構，聚四氟乙烯閥體防腐
Features: Isolation diaphragm structure, PTFE valve body anti-corrosion
進口塑料王電磁閥工作原理--Working
principle of imported plastic king solenoid valve
常閉式：當線圈通電時，電磁閥打開。當線圈斷電時，電磁閥關閉
Normally closed: When the coil is energized, the solenoid valve opens. When the
coil is de-energized, the solenoid valve closes
進口塑料王電磁閥選型參數(shù)--
流體溫度: 聚四氟乙烯: -20℃ 200℃
壓 力: 0MPa ~ 0.6MPa
連接尺寸:
1/8", 1/4", 3/8", 1/ 2"
螺 紋: G螺紋, NPT螺紋，M8×1
電 壓: DC - 12V, 24V 、AC - 24V, 120V,
240V/60Hz; 110V, 220V/50Hz
范 圍: ±10%
材 料: 閥體- 聚四氟乙烯
密封件- 聚四氟乙烯
隔磁管- 不銹鋼304
動鐵芯- 不銹鐵430F
靜鐵芯- 不銹鐵430F
彈簧- 不銹鋼304
分磁環(huán)- 紫銅
