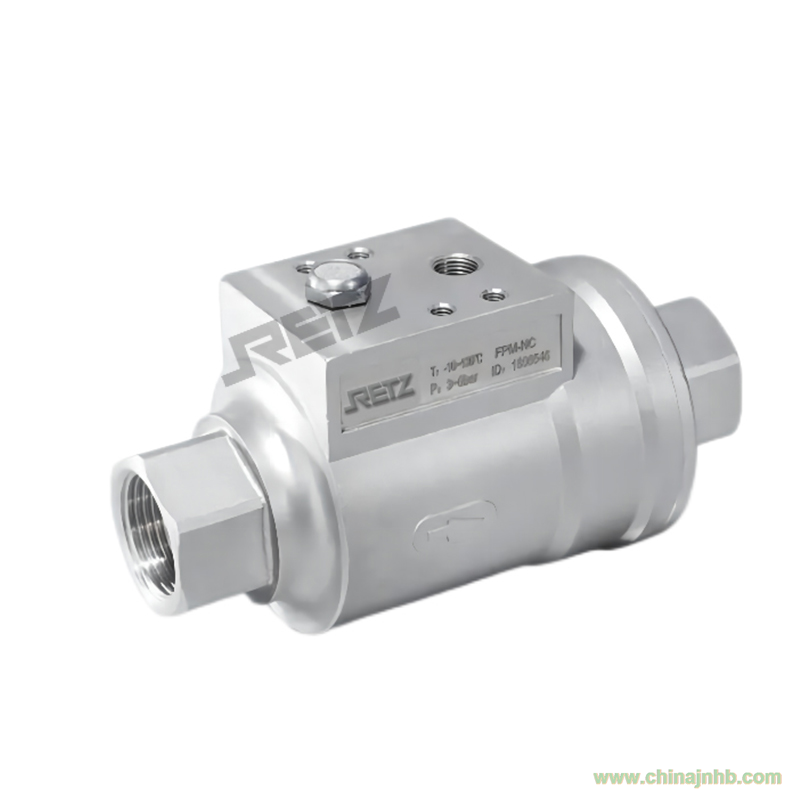

品牌：RETZ瑞茨/我們一直致力于流體控制和測控領域的持續創新，始于2005……氣動梭閥壓縮空氣迫使活塞往復運動，達到閥門的開啟與關閉。介質壓力作用在閥座上，活塞幾乎不受阻力干擾，所以閥門可快速開或關。經改進的閥內結構，使介質流態更好，壓損更小 retz
The compressed air of the pneumatic shuttle valve forces the piston to move
back and forth, achieving the opening and closing of the valve. The medium
pressure acts on the valve seat, and the piston is almost unaffected by
resistance, so the valve can quickly open or close. Improved valve internal
structure, resulting in better fluid flow and reduced pressure loss
進口氣動梭閥工作原理
Working principle of inlet pneumatic shuttle valve
1.關閥Close the valve
當"A"孔進氣（"B"孔排氣）時，活塞向"D'口移動并壓在閥座密封上，此時閥門關閉。When
the "A" hole intake ("B" hole exhaust), the piston moves to
the "d'port and presses on the valve seat seal. At this time, the valve is
closed.
單動常閉型的彈簧安裝在"A"端腔室。在非控制時，活塞是壓在閥座上，所以其常用的是關閉位。The
single acting normally closed spring is installed in the "A" end
chamber. In case of non control, the piston is pressed on the valve seat, so
its most commonly used position is the closed position.
2.開閥Open valve
當"B"孔進氣（"A"孔排氣）時，活塞軸從閥座向℃"口方向移動并在行程末端停止，此時閥門開啟。When
the "B" hole intake ("a" hole exhaust), the piston shaft
moves from the valve seat to the "C" port and stops at the end of the
stroke. At this time, the valve is opened.
單動常開型的彈簧安裝在"B"端腔室。在非控制時，活塞是離開座的，所以其常用的是開啟位。The
single acting normally open spring is installed in the "B" end
chamber. In case of non control, the piston leaves the seat, so its most
commonly used position is the open position.
進口氣動梭閥特點
Features of imported pneumatic shuttle valve
體積小，外觀美，壽命長
采用不銹鋼閥體，外觀高檔，耐腐蝕
活塞與密封合二為一，簡單可靠，具有超長使用壽命
可任意方向安裝。
由于介質壓力作用在閥座上活塞幾乎不受阻力干擾，所以開關速度快，壓損小。
耐真空密封性能佳，可用于真空管路。
進口氣動梭閥技術參數Technical Data
管道壓力 Fluid
Pressure Max 1.6MPa(232psi)
控制壓力 Control
Pressure 0.3-0.8MPa(43.5-116psi)
控制介質 Control Fluid
中性氣體或空氣Neutral
gas,Air
閥體材料 Body Material
CF8M/CF8
密封材料 Seals
Material 三元乙丙EPDM/氟橡膠FKM(VITON)
適用介質 Applicable
Fluid FKM 適用于絕大多數介質,蒸汽除外.FKM-Suitable for most fuid,except for steam.EPDM適用于熱水和蒸汽,不適用于油脂類,燃料等.EPDM-Suitable for steam and hot water,unsuitable for oils,
greases, fuels etc.
介質溫度 Fluid
Temperature -20℃-+150℃(FKM),-20℃-+130℃(EPDM)
環境溫度 Ambient
Temperature -20℃-+80℃
控制形式 Control Type 單作用常閉、常開,雙作用常閉,雙作用自由態Nomalycosed.Nomallyopen. Double acting wth spring.Double
acting
連接形式 Connection
Type 螺紋式 Threaded(BSP,NPTBSPT)
